Performance Parameter
| model | G40S-3 | G60S-3 | G100S-3 |
| input voltage | AC220V | ||
| Rated power | 300w | 450W | 650W |
| Starting torque | 40N.m | 60N.m | 100N.m |
| Idle running time | 15min | 25min | 30min |
| Maximum lifting door weight | 15㎡ | 15㎡ | 15㎡ |
| Supporting electronic control | split type | ||
| Deceleration method | Reduction mechanism of copper worm gear and worm gear | ||
| No load speed | 24r/min | ||
| Lubrication method | oil-immersed | ||
| noise | ≤55dB | ||
| Manual chain form | 360 ° universal chain | ||
| Maximum limit travel | Rotate the output shaft 20 times | ||
| Limit switch type | Absolute value encoder electronic travel limit | ||
| Output shaft aperture | Φ25.4mm | ||
| Usage environment | -20℃ ~+45℃ | ||
| Work system | S2 20% | ||
| Protection level | IP54 | ||
| Whole machine quality | 13KG | ||

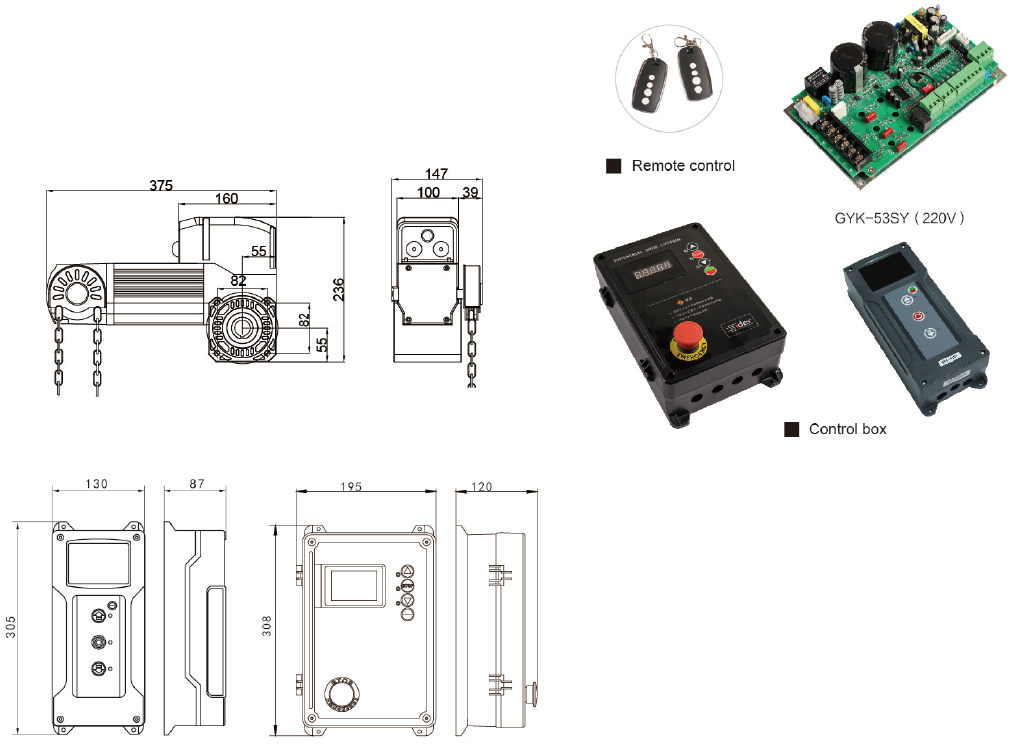

Dimensions
GYK-56S Characteristics:
● Equipped with frequency conversion function, it can achieve slow start and slow stop function;
● Human computer interface, through digital display function, enables information exchange between humans and machines;
● It can display the operating status of the door body;
● Fault code display, helpful for fault identification and troubleshooting;
● Equipped with door interlock protection function;
● Equipped with interfaces for airbag, infrared and other safety protection functions;
● Equipped with infrared, airbag and other safety interfaces;
● It can be connected to geomagnetic and access control systems to achieve unmanned management and automatic door opening and closing.
