Performance Parameter
| model | GYJ-SF-750 | GYJ-SF-1500 | GYJ-SF-2200 | GYW-SF-750 | GYW-SF-1500 | GYW-SF-2200 |
| input voltage | AC220V | AC220V | ||||
| Rated power | 750W | 1500W | 2200W | 750W | 1500W | 2200W |
| Starting torque | 3.6N.m | 7.2N.m | 15N.m | 3.6N.m | 7.2N.m | 15N.m |
| Supporting electronic control | GYK-93SF-5 | GYK-93SF-6 | GYK-93SF-9 | GYK-93SF-5 | GYK-93SF-6 | GYK-93SF-9 |
| motor speed | 3000r/min | 2000r/mmin | 1500r/min | 3000r/min | 2000r/min | 1500r/min |
| Door opening form | PVC soft curtain | Hard turbine | ||||
| Deceleration method | Worm gear reduction | planet gear | ||||
Deceleration ratio | 1:10/1:15/1-20 | 1:15/1:20 | 1:20/1:30 | 1:10/1:15/1:20 | 1:15/1:20 | 1:20/1:30 |
| Lubrication method | Oil immersed type | Oil immersed type | ||||
| Noise during no-load operation | ≤58dB | ≤58dB | ||||
| Limit switch type | Multi cycle absolute value encoder | Multi cycle absolute value encoder | ||||
| Output shaft aperture | 25mm | 28mm | 25mm | 28mm | ||
| Usage environment | -20℃C-+45℃ | |||||
| Protection level | IP54 | |||||

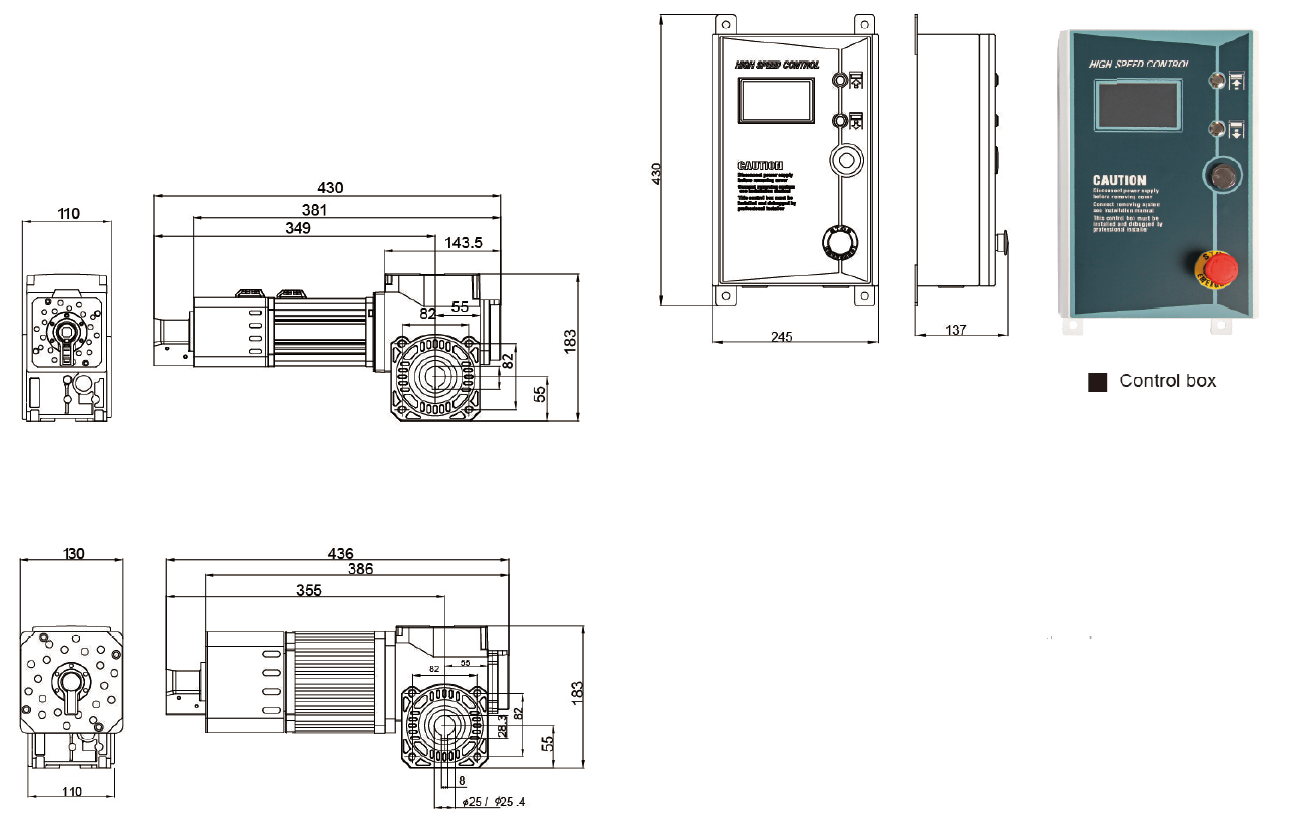

Dimensions
GYK-93SF Characteristics:
●Touch screen LCD display, Chinese and English operation interface, more convenient debugging;
●The metal buttons for opening and closing doors have a better tactile feel and are more durable;
●Built in electromagnetic braking system, ensuring timely and stable braking during operation;
● Speed loop, current loop, and position loop closed-loop control provide more comprehensive protection and more accurate positioning; It has a slow start and slow stop function, and the speed of opening and closing doors can be adjusted;
●Equipped with a 485 communication interface, it can be connected to external devices such as computers for networking purposes;
●There are three multifunctional signal output ports that can provide position signals of three sets of doors to other devices for linkage or interlocking;
●Chinese (English) prompts for faults, convenient for remote guidance and quick troubleshooting;
●Equipped with infrared, airbag and other safety interfaces;
Multiple methods such as buttons, remote control, radar, etc. can be used to open and close doors;
● It has maintenance prompt function and can set maintenance interval time;
